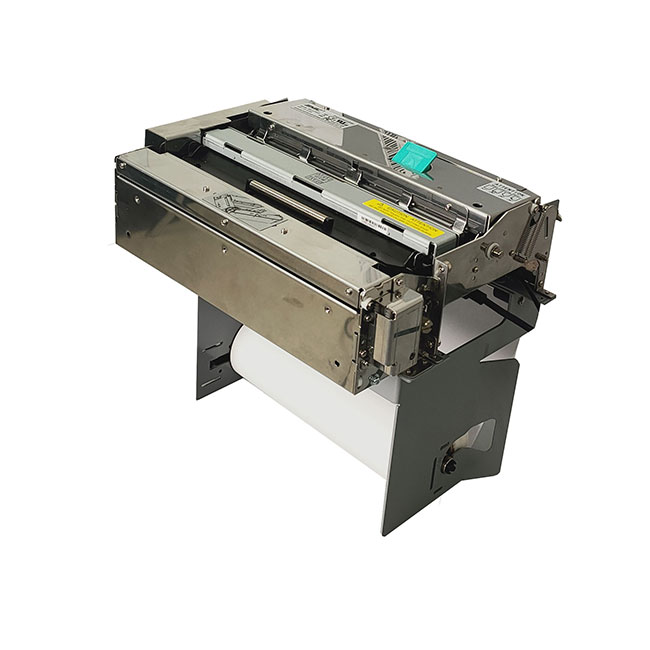

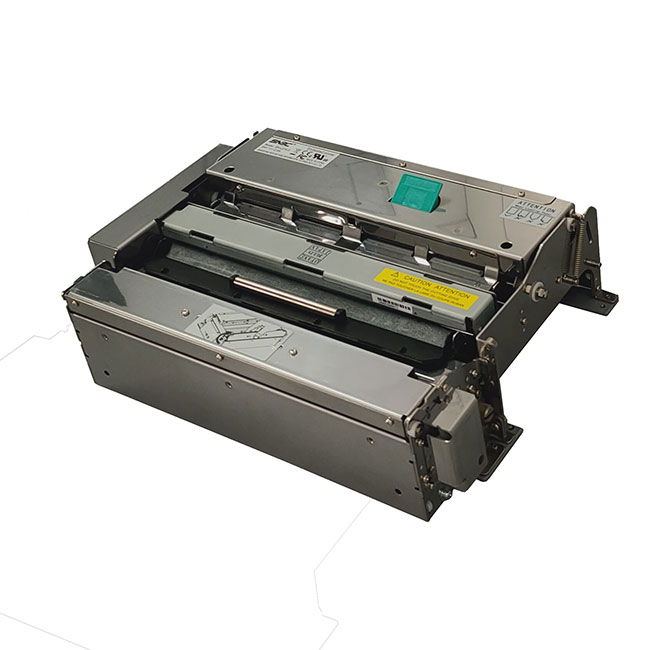

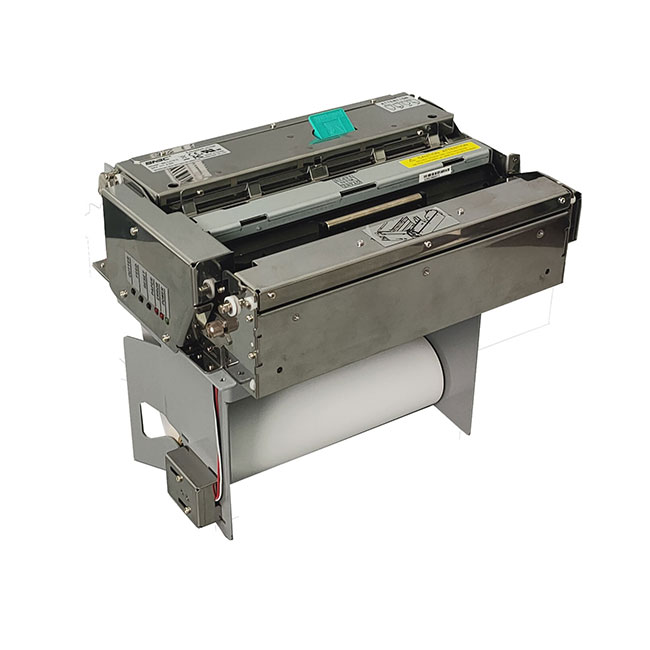

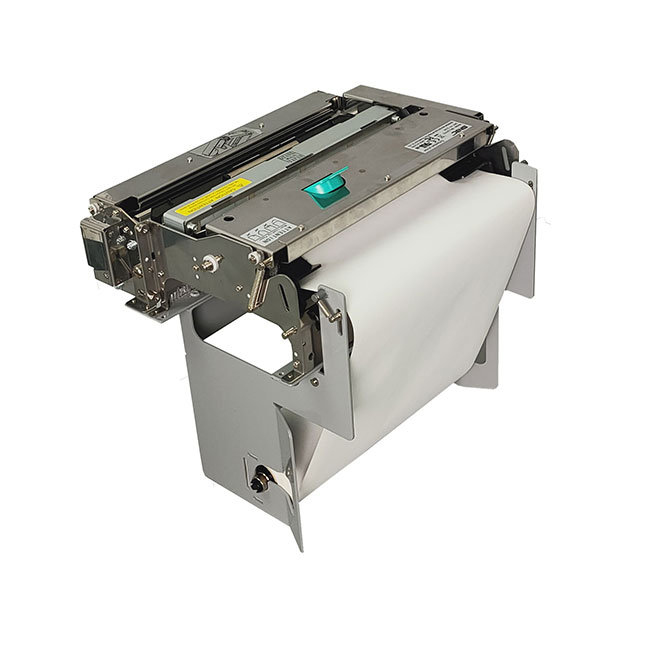

Thermal KIOSK Printer BK-L216II

Availability:
Quantity:

Product Description

Features:

Specially designed for unattended printing applications

High-speed printing (125mm/s)

Paper roll up to 203mm

Auto paper loading/auto cutter/presenter

Modular design, easy to use and maintain

Flexible paper roll positions (vertial/horizontal)


Applications:

Gaming/lottery

Information kiosk

Vending machine

ATM/EFT



ItemsBK-L216II
PrintPrint methodDirect thermal line printing
Resolution203 / 300DPI
Print widthMax. 216mm (8.5 ")
Print speed203DPI: Max.125mm/s
300DPI: Max.100 mm/s
MemorySDRAM: 8MB
Flash: 1MB(Standard), 2MB/4MB (optional)
SensorsPaper load, black mark, paper near end, presenter, TPH position, THP overheat protection
DriverWindows Driver(WIN2000/XP/Server 2003/VISTA/Server 2008/Win7/Win8/ XPE)
InterfaceUSB; Serial
Barcode
Fonts
Barcode1D: UPC-A, UPC-E, EAN 13, EAN 8, CODE 39, CODE 93, ITF, CODABAR, CODE128
2D: PDF417
Fonts200DPI: Font A (12x24), Font B (9x17), Kanji Font (24x24)
300DPI: Font A (18x34), Font B (13x24), Kanji Font (24x24)
Character modificationRotate (0°, 90°, 180°, 270°), enlarge (1-6X), emphasize, underline, reverse
PaperPaper typeContinuous paper, Marked paper, Folded paper
Paper width210-216mm
Paper thickness0.06~0.10mm
Paper roll OD203mm
Paper roll ID25.4mm
Paper cutFull cut
PresenterPaper out modeRetract/ holder paper/ spit out paper/ close
Paper retraction speed400mm/s
Paper out speed400mm/s
Power SupplyInputAC 220V±5%,50/60Hz
OutputDC 24V,2.5A
ReliabilityPrint head lifetime≧100km
Cutter lifetime≧500,000 cuts
EnvironmentOperation condition5~45°C, 20~90% RH(40°C)
Storage condition−40~60°C, 20~93% RH(40°)
Physics Spec.Dimensions297(W)×211(D)×88(H)mm
(Without paper holder)
WeightApprox. 4.4Kg
(Without paper holder)
StandardsStandardsCE, CB, UL, FCC
