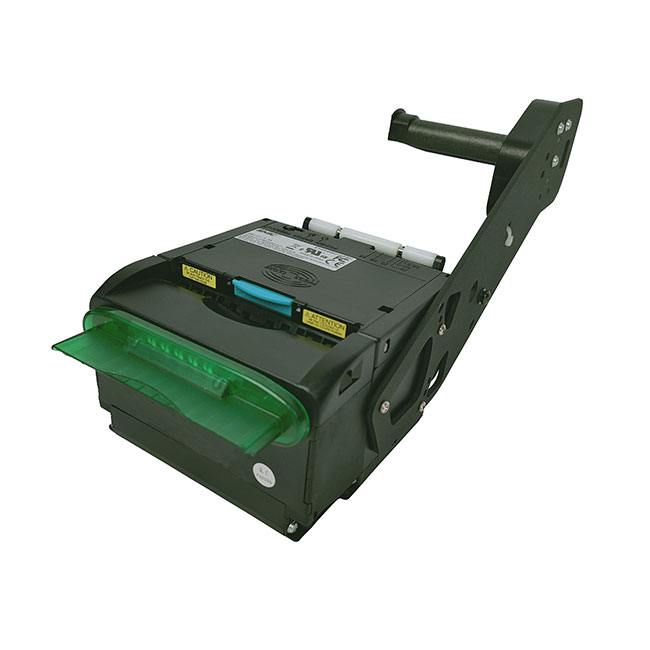

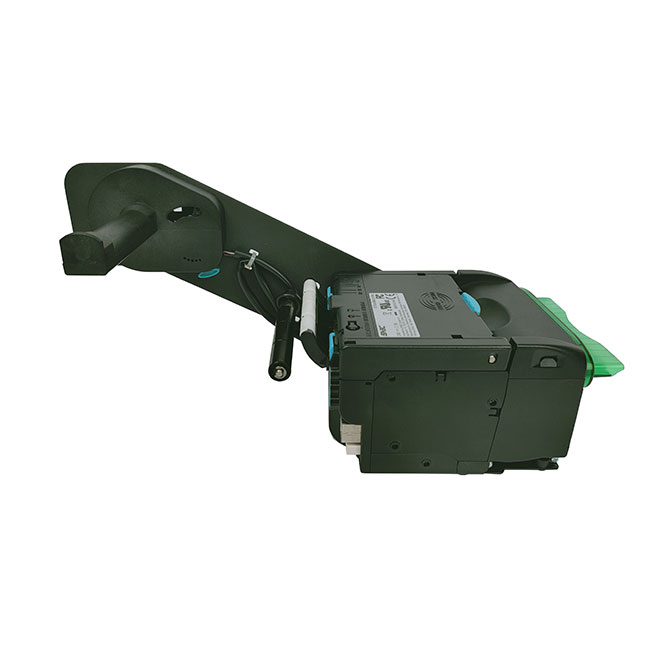

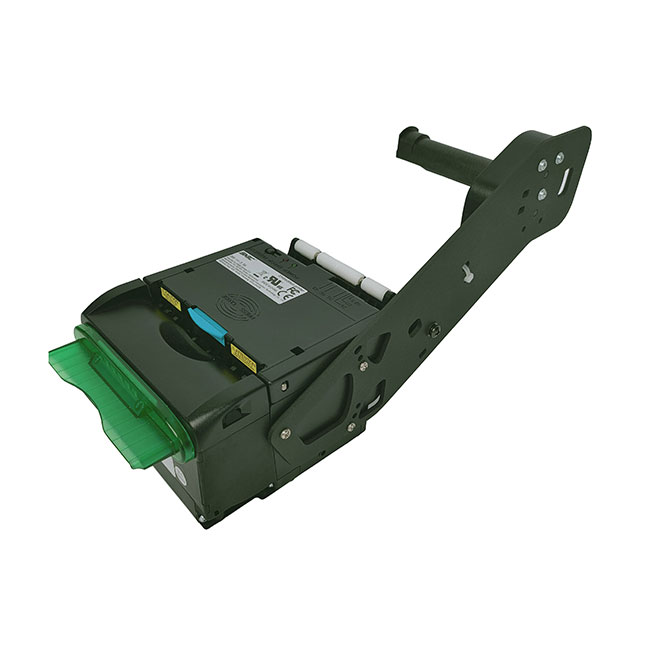

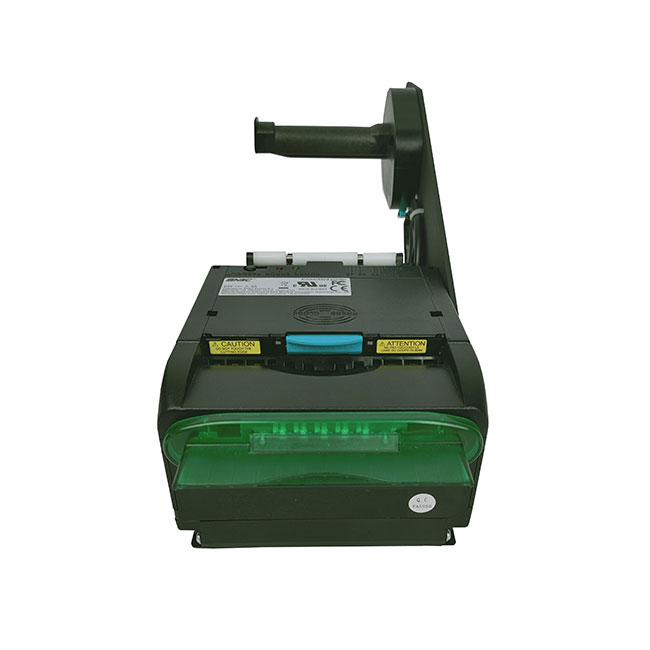

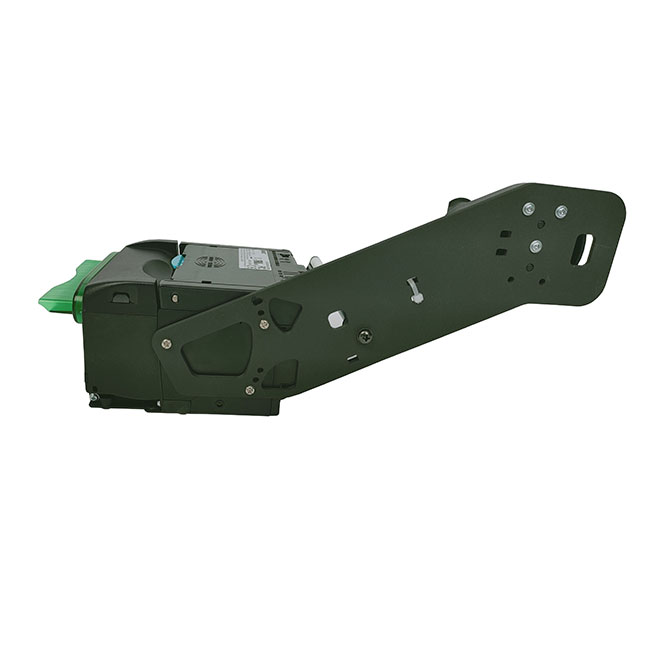

Kiosk Printer BK-C310

Availability:
Quantity:

Product Description

Features:

Anti-jam and anti-pull function

Specially designed for unattended printing applications

High-speed printing(230mm/s)

With capacity to drive up to 300mm paper roll

Auto paper loading/auto cutter

Modular design, easy to use and maintain


Application:

Self-service kiosks

ATMs&Banking machine

Vending machine

Gaming machine

Queue management system


ItemsBK-C310
PrintPrint methodDirect thermal line printing
Resolution203 x 203 DPI
Print widthMax. 80mm
Print speedStandard: 150mm/s;
Max.: 230mm/s
MemorySDRAM: 2MB, FLASH: 4MB
InterfaceUSB2.0/Serial
Barcode
Fonts
One-dimensional barcode1D: UPC-A, UPC-E,JAN8 (EAN8), JAN13 (EAN13), CODE 39, CODE 93, CODE 128, ITF, CODABAR
2D: PDF417, QR, Maxicode, 2D GS1
FontsFont A(12×24), Font B(9×17), Kanji Font(24×24)
PaperPaper typeContinuous paper, Marked paper
Paper width48~82.5mm, continuously adjustable
Paper thickness0.05~0.1mm
Paper roll ODMax. 300mm
Paper roll ID25.4mm
Paper cutFull cut
PresenterPaper out modeRetract/ hold paper/ spit out paper / close
Paper retraction speed600mm/s
Paper out speed600mm/s
Optional moduleOptional moduleAnti-pulling paper & paper jamming module, Paper outlet with LED, Paper outlet color: optional of green/blue
Power SupplyInputAC 220V±5%, 50~60Hz
Output24VDC, 2.5A
ReliabilityPrint head lifetime≧150KM
Cutter lifetime≧1,000,000 cuts (full cut, paper thickness: 0.065mm)
EnvironmentOperation condition0~50°C, 20~90%RH (40°C)
Storage condition−25~60°C, 15%~98% RH (40°C)
Physics Spec.Dimensions116(W)x146.8(D)x76.7(H)mm
(Without paper holder)
WeightApprox. 1.5Kg
(Without paper holder)
StandardsStandardsCE, CB, UL, FCC
