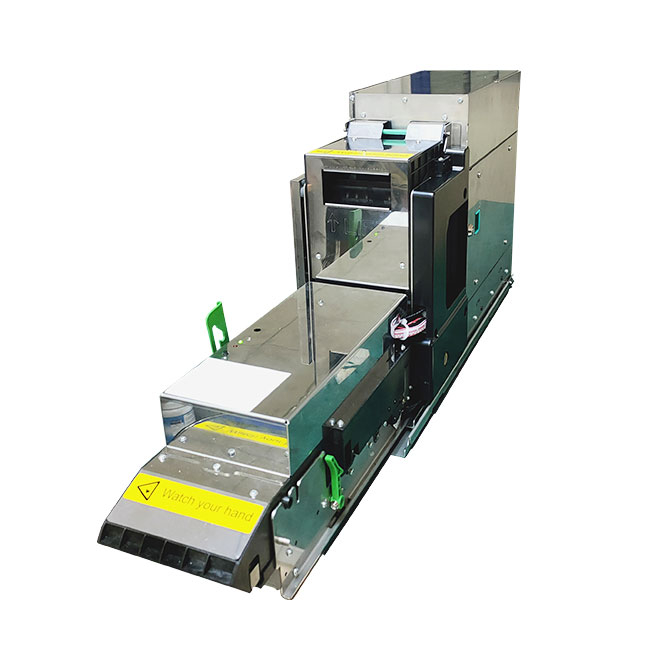

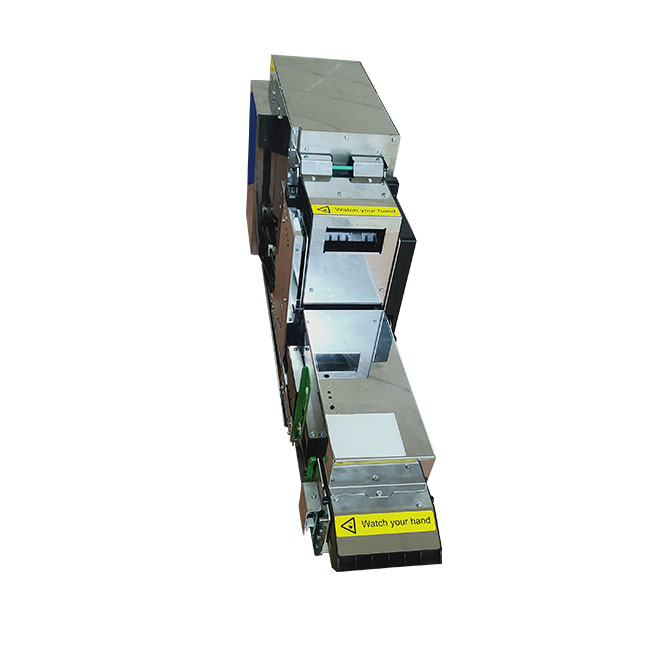

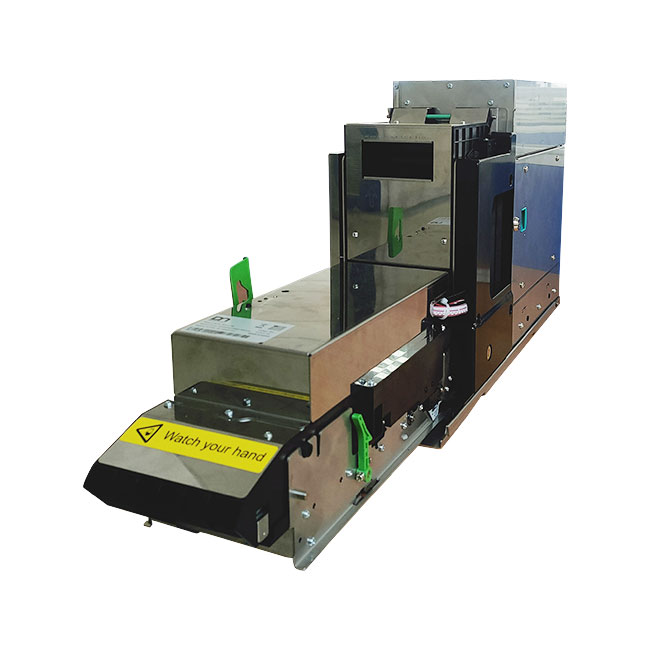

Check Series BS-C110P

Availability:
Quantity:

Product Description

ItemBS-C110P
Double scanningStandard configuration: Gray scan for both sides
Optional configuration: Top--Infrared scanning or ultraviolet scanning
Scanning speed300mm/s
Scanning widthMax.104mm
ResolutionStandard: 300DPI*300DPI
Optional: 200DPI*200DPI
Image typeTiff G4/JPEG/BMP
SoftwareWindows 7/8/10  32 Bit or 64 Bit, Linux SDK
XFS driver: OpenSuse 10.2 - Kernel 2.6.18.8-0.13.1bb-default
SLED 11 SP4 (i586) - Kernel 3.0.101-71-pae
SLED 12 SP3 - Kernel 4.4.183-6.38-default
MICRE13B, CMC7: Recognition rate: ≥98%
E13B, CMC7: Error recognition rate: ≤0.1‰
Auto alignmentSupported
Double sheet detectionSupported
Power socketMolex socket39-28-8020: Same as TP31
Power supply24V±5%
2.5A
Communication interfaceUSB2.0 (high speed)
Customer LEDNo
Power switchNo
Check width70~100±0.5mm
Check length175~220mm
Check thickness0.09~0.13mm
CassetteOptional (Max. 1,000pcs)
Cassette lockSupport
Operation environment5°C~50°C, 20% ~ 90% RH(40°C)_
Storage environment-40°C~60°C,20% ~ 90% RH(40°C)


Download File
