Product Description

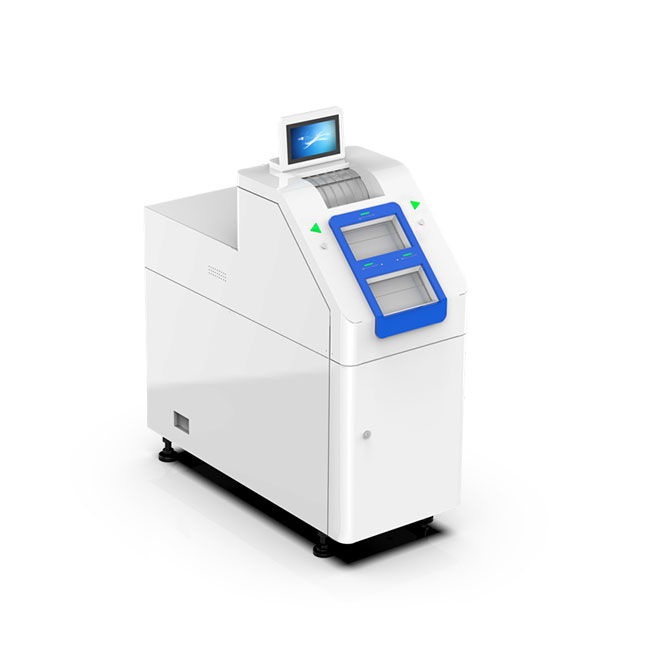

Based on SNBC’s own TCR module, SNBC developed TCR terminal, it can accelerate the transaction, free staff from cash counting, and keep staff focus on improving customer experience.
Features:
- High speed processing ability, up to 12 notes per second
- Forgotten retraction function, retract the forgotten banknotes
- If the customer cancels the deposit, independent temporary storage mode allows the original currency returned to the customer.
- Self-counting function (all recycling cassettes can be calculated within 30 minutes)
- Double cash-out pocket design allows multiple application modes
- With sorting function
- Large quantity deposit function supports banknote non-stop feeding
- Large quantity withdraw function supports banknote removed in sequence from two pockets
- Up to 17,000 note capacity, with standard 1 retraction cassette, 4 recycling cassettes
- Both retraction and recycling cassette support one or two kinds of denomination
- Open and modular design, easy for maintenance
| Complete Machine | |
| Item | Specification |
| Touch screen | 7’’ touchscreen |
| Safe sensor | Door-Heat-opt Seimic (Optional) |
| Safe lock | Static password lock, Key lock |
| PC | CPU: Intel i5 , J1900/ RAM: 8GB,16GB / HD: SSD, 256GB |
| Interface: 2 X LAN(minimum), 2 X USB2.0(minimum), 2 X USB 3.0, | |
| 3 X RS232(optional), 1 X VGA, 1X DVI, 1 X HDMI, 2 X AUDIO, 2X PS2 | |
| 4G (Optional) | |
| Indicator | Dual indicators on both left side and right side |
| Adjustable feet | Optional |
| Safe stanard | UL291 |
| Maintenance direction | Front, upper |
| Cover | Metal cover |
| Module | |
| Item | Specification |
| Cash | RMB, USD, EUR, REAL, RUPEE |
| Cash Size | Length: 120-180mm Width: 60-85mm |
| Speed | Deposit: ≥12/S Withdraw: ≥12/S |
| Cash-in Slot Capacity | With shutter ≥300 circulating notes (Equal to 600PCS new notes with thickness of 0.11mm） |
| Without Shutter≥500 circulating notes (Equal to 1100PCS new notes with thickness of 0.11mm） | |
| Cash-out Slot Capacity | ≥300 circulating notes (Equal to 600PCS new notes with thickness of 0.11mm) |
| Escrow | ≥300 circulating notes (Equal to 600PCS new notes with thickness of 0.11mm) |
| Cassette Capacity | Single denomination recycling cassette, acceptance cassette: ≥3400 new notes (thickness:0.11mm) |
| Dual denomination recycling cassette: Cassette1 ≥1800 new notes (thickness:0.11mm) | |
| Cassette2 ≥450 new notes (thickness:0.11mm) | |
| Cassette | 1 acceptance cassette, 4 recycling cassettes |
| Reliability | Lifetime: 10 years |
| MTBF ≥6000 hours | |
| MCBF(Withdraw) ≥20000 tractions | |
| MCBF(Deposit) ≥10000 tractions | |
| MTTR ≤30 minutes | |
| Environment | Operation: 0°C～45°C,20% ～ 90% RH (40°C) |
| Storage: -40°C～55°C，20% ～ 93% RH (40°C) | |
