BTP-RM180
SNBC
Product Description

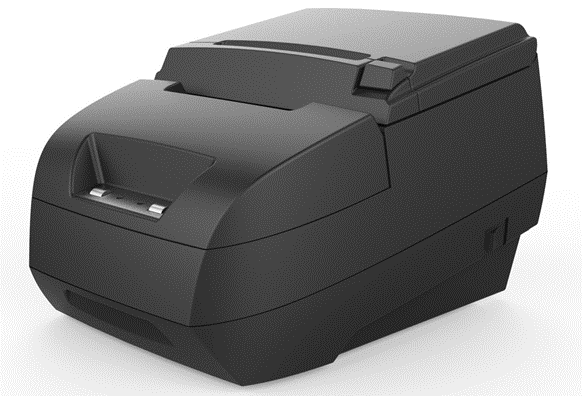

SNBC BTP-RM180 is a reliable and efficient printer that supports thermal printing and needle printing.
Features:
Hybrid printer, support thermal printing and needle printing
Text Mode: 200 mm/s, Graphic Mode: 120 mm/s high-speed printing
Support full and partial cut
Printer Mechanism:
Item | Specifications |
Dot density | 203 dpi (8 dots/mm) |
Paper width | 80 / 76 mm (+0,5 / -1,0 mm) |
Printing width | Min. 72.0 mm (576 dots) |
Printing speed | Text Mode: 200 mm/s Graphic Mode: 120 mm/s |
Receipt | 40mm minimum |
Distance from printing position to cutting position: | 17mm maximum |
Thermal head life span | 100 Km minimum (12,5% printing duty at 25°C with OJI KPH55 or OJI TERMOBANK papers) |
Cutter life span | 1 million cuts minimum. |
Thermal printhead energy control | Must have printhead temperature sensor and voltage sensor for energy self-adjustment in order to keep printing uniformity and avoid printhead over heating |
