Product Description
Features:
Complete banknote information acquisition
Serial number recognition
Multi-types of detection
High extensibility
Modular design with easy maintenance
High security of Anti-fishing
Applications:
Embedded in self-service kiosk for banknote authentication and acceptance, applied to retails, telecommunications, financial industries

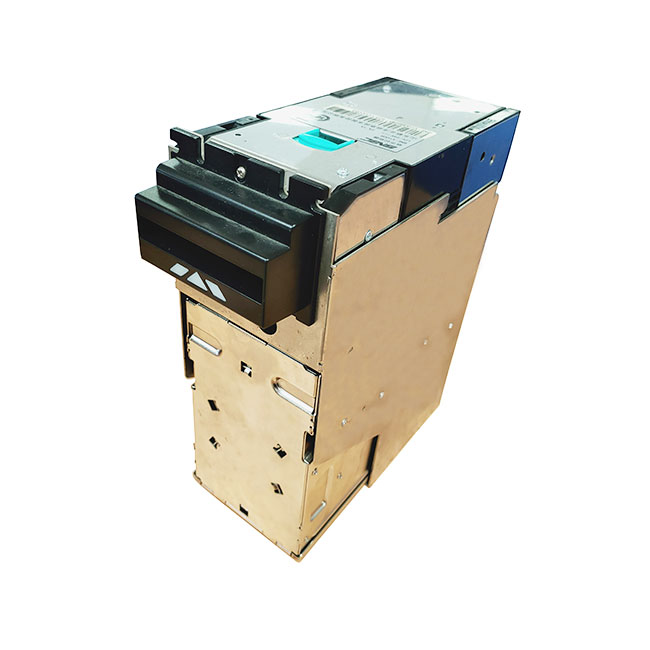

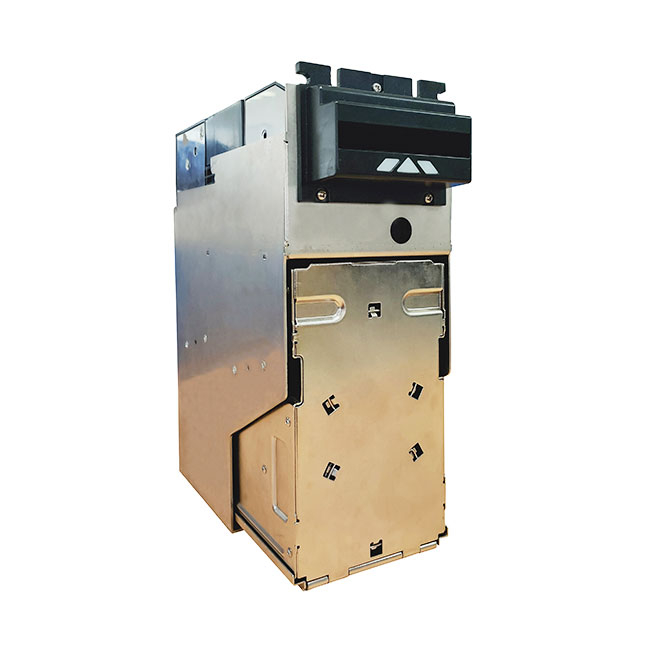

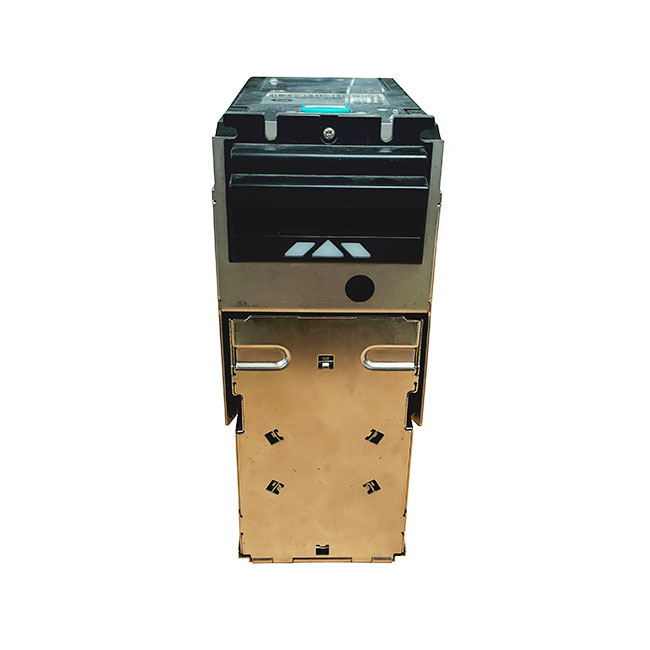

| Items | BNE-V200 | |
| Banknote Processing Capacity | Currencies | Support: USD, RMB, INR Availabe to extend other currencies |
| Banknote Insertion | 4 orientations | |
| Insertion angle | Automatic skew detection | |
| Recognition rate | ≥ 98% | |
| Banknote Size | Width: 62-77mm | |
| Length: 120-155mm | ||
| Processing Time | < 2.5s/note | |
| Interface | Type | Working: RS-232, RS-485 |
| Maintenance: USB2.0 High speed | ||
| Communication Protocol | EBDS, MDB, CCNET | |
| Extended Communication Protocol | CEN-XFS (based on customers’ demand) | |
| Power | Power Supply | Standard: +12V DC±5% |
| Supportable range: +12~28V | ||
| Power Consumption | Standby: <4.3W | |
| Working: <30W | ||
| Maintenance | Error Indication | Red & Green LED at entrance and for diagnosis |
| Maintenance Mode | Optional front and rear maintenance | |
| Reliability | Service Life | 1 million times |
| Additional Functions | Anti-fishing | Support |
| Serial Number | (Option) Recognition and record | |
| Barcode Coupon | (Option) Customization | |
| Environment | Working | 0℃~45℃, 20%~90% (40℃) (Non-condensate) |
| Storage | -40℃~60℃, 20%~90% (40℃) (Non-condensate) | |
| Physical Spec. | Dimensions | Validator: 106*208.7*271.7mm |
| (W*D*H) | Cassette: 101.8*200.7*170.7mm | |
| Weight | Recognition module & bracket: 5Kg | |
| Cassette: 1.6Kg | ||
| Cassette Capacity | 1000 notes | |
